Harsh environments can take a toll on imaging equipment. That’s why the MidOpt® LE100 Lens Enclosure is designed to shield lenses and filters from dust, debris, moisture and impact – while maintaining optical clarity and alignment.
Constructed from anodized aluminum with a durable acrylic or glass window, the LE100 ensures your machine vision system performs reliably in industrial or outdoor settings. It's designed to integrate with CS-mount cameras, but is also equipped with a built-in 5mm spacer to adapt to C-mount lenses.
Specs & Options
The MidOpt® LE100 Lens Enclosure is designed to protect lenses and filters in harsh, dusty or wet environments. It features a removable front window – available in either AR (anti-reflection) coated glass (LE100-LP340) or acrylic (LE100-AC380) – and is compatible with most standard lenses and filters.
Both sets include the following to accommodate lenses up to 42.5mm in length and 39mm in diameter:
- LE254-43: Enclosure mount with built in 5mm spacer
- LE025-43: 25mm Extension tube
- LE010-43: 10mm Extension tube
- LE005-43: 5mm Extension tube
* Additional extension tubes in the above sizes are available and can be purchased individually to accommodate longer lenses

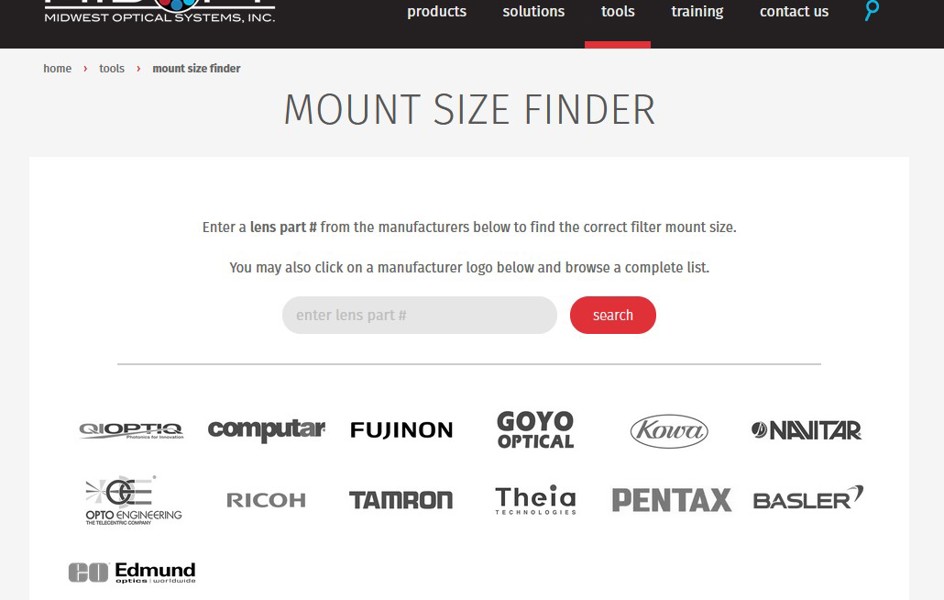

Contact us for assistance in finding the correct lens enclosure size.
