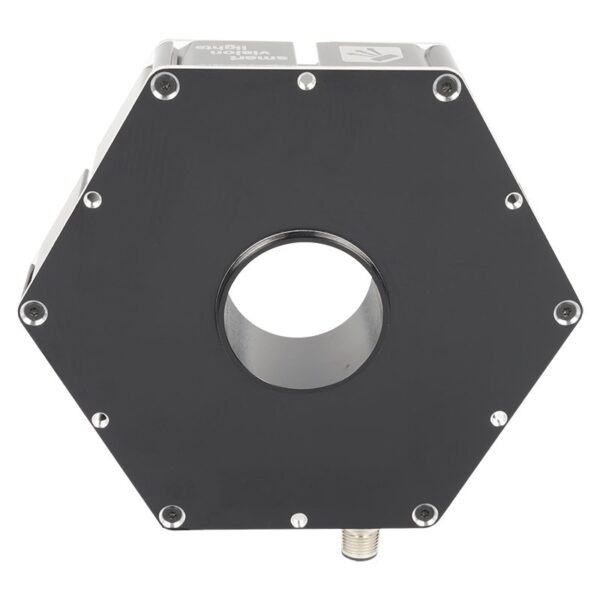

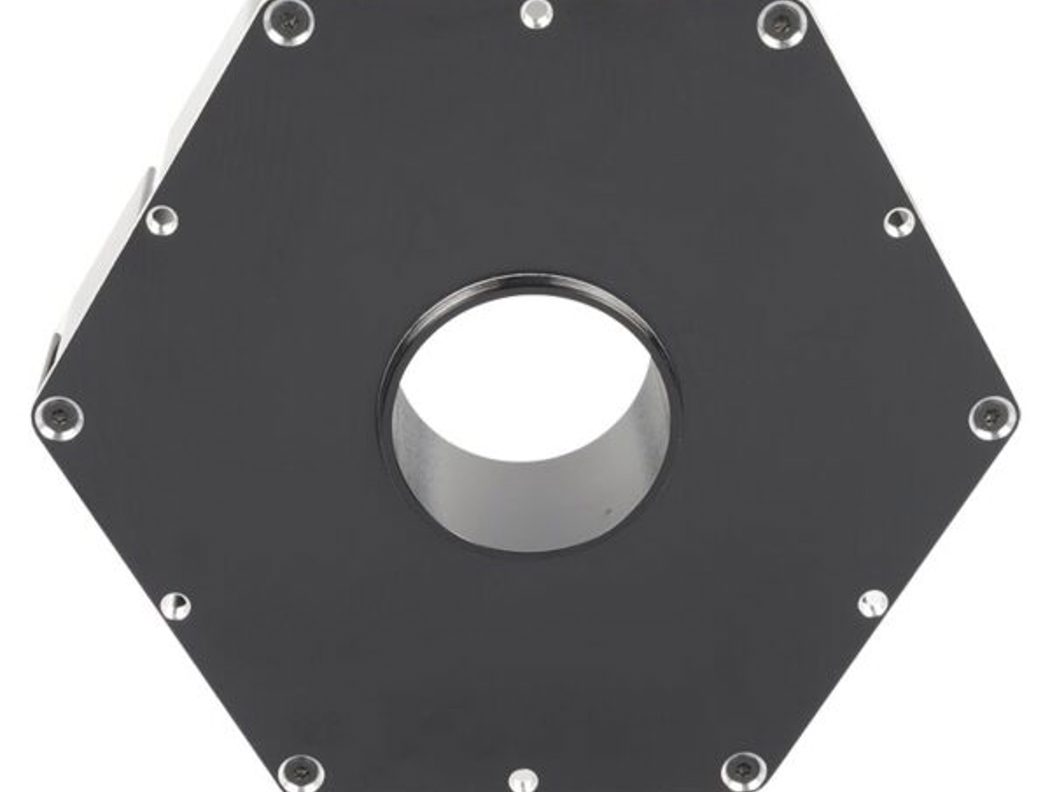

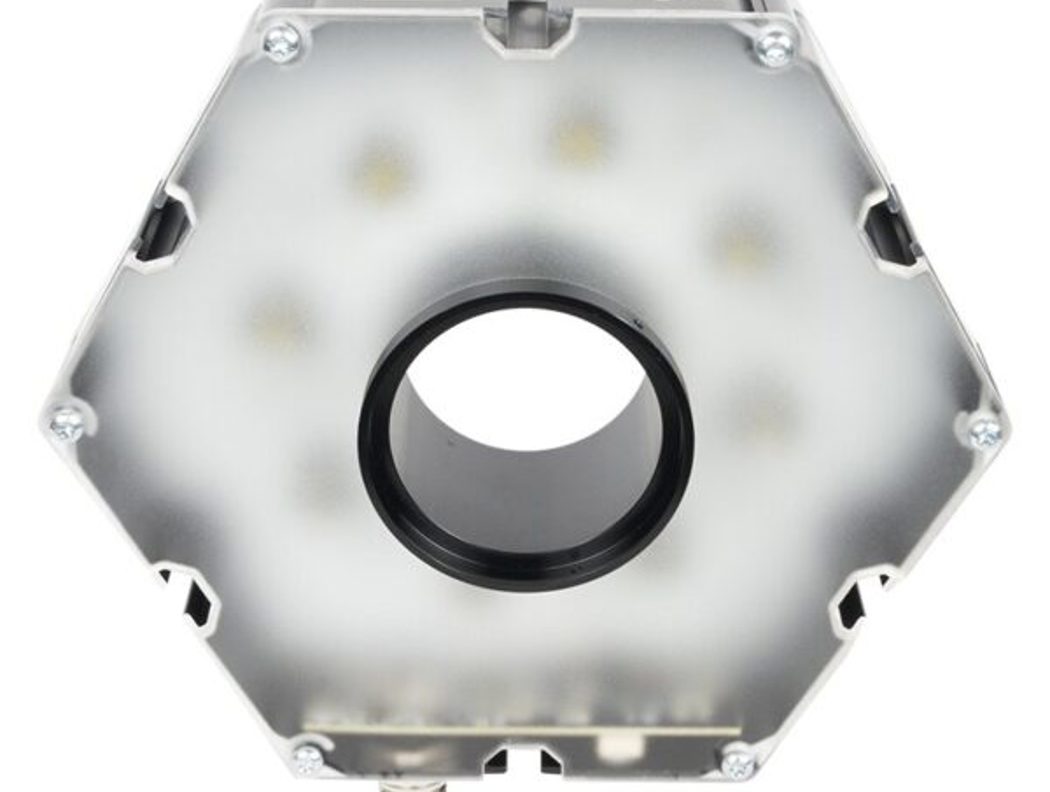

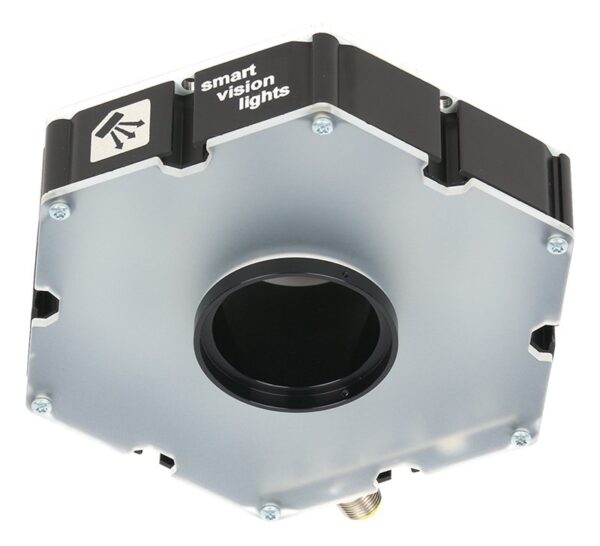

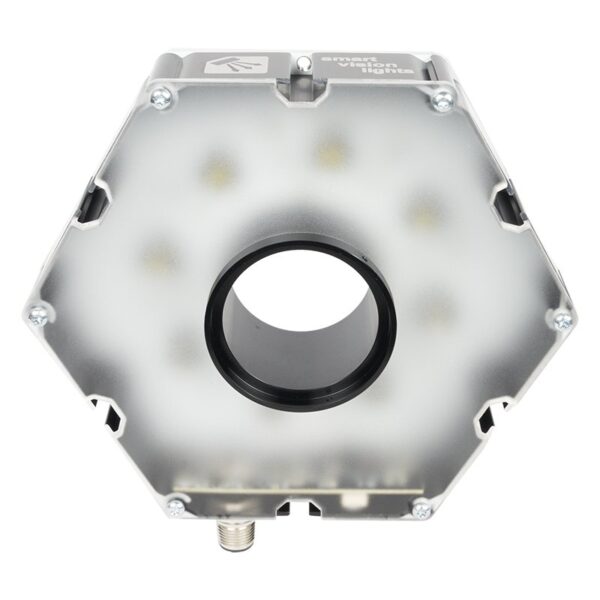

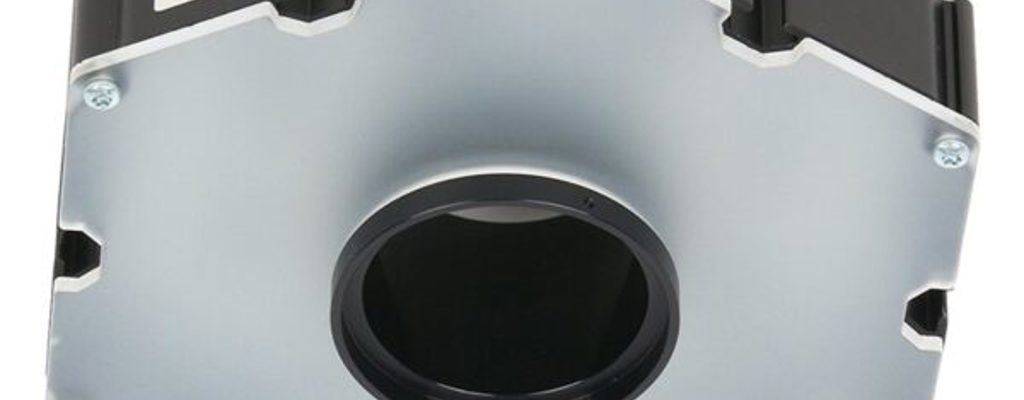

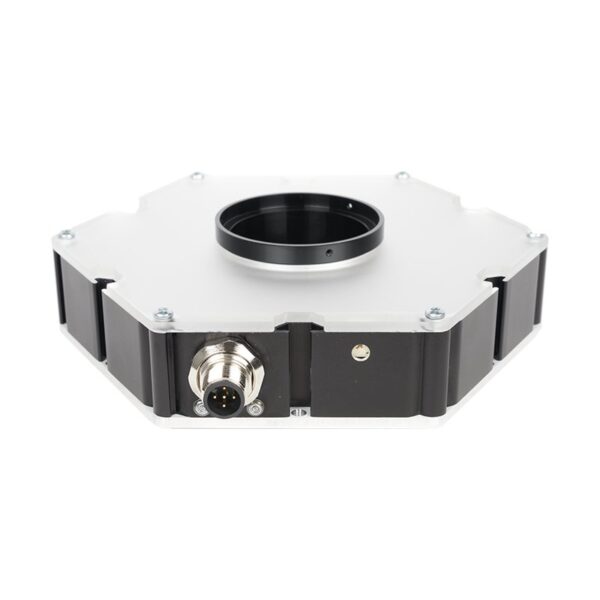

R130 EZ Mount Ring Light

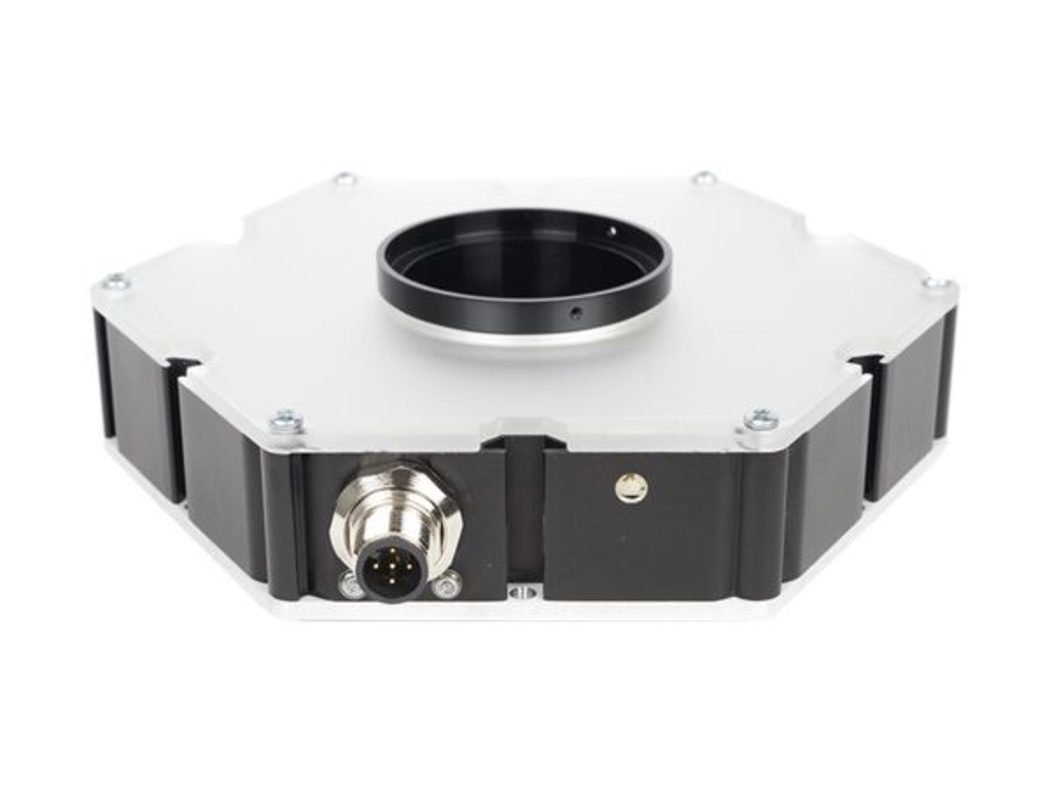

Heat is dissipated through the aluminum housing, allowing the R130 EZ Mount Ring Light Series to be run at a higher current and a greater intensity. Its simple plug-and-play 5-pin M12 connector is easy to use. The 10%-100% intensity control gives users full control over light output will operate with either an NPN or a PNP trigger signal inputs and runs on an industry-standard 24VDC. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kit adapters.
Product details
| Illumination Type | Radial |
| IP Rating | IP50 |
| Min. Working Distance | 300mm |
| Max. Working Distance | 4000mm |
| Mode | Continuous |
Wavelength:
- White
- 365 - UV
- 395 - UV
- 470 - Blue
- 505 - Cyan
- 530 - Green
- 625 - Red
- 850 - IR
- 940 - IR
Lens Configuration:
- Narrow - 14°
- Wide - 30°
