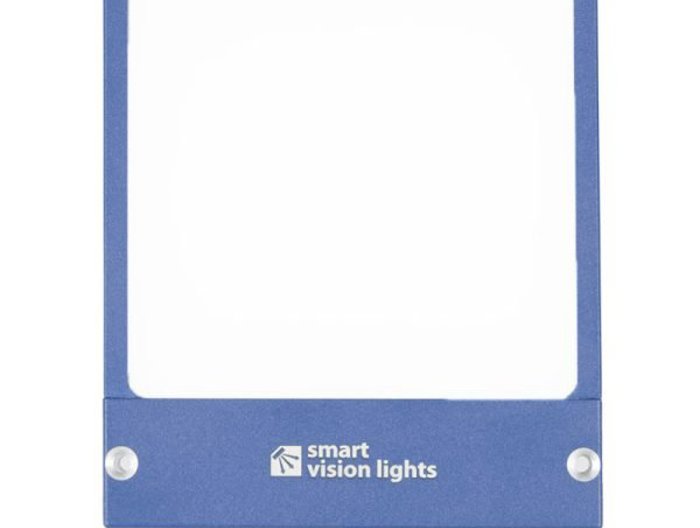

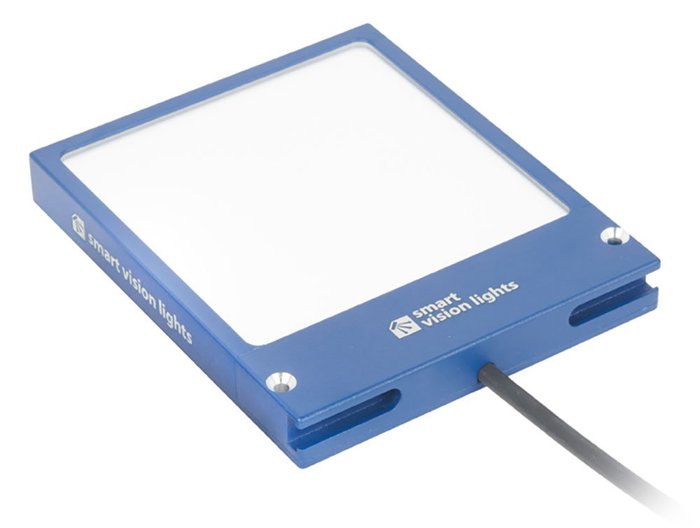

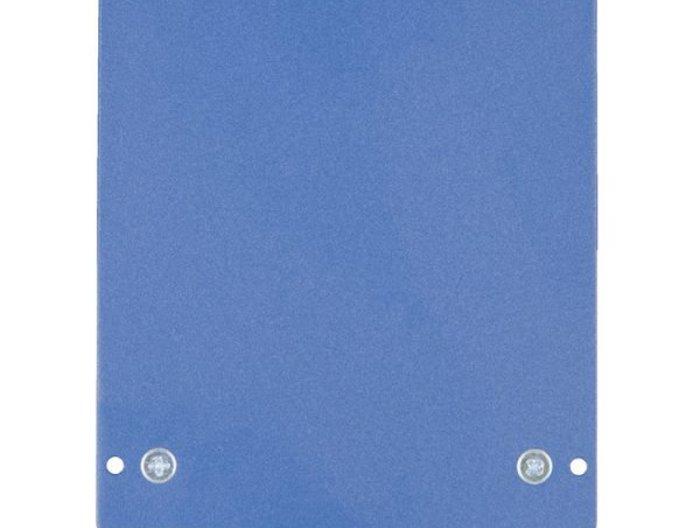

The MBL Series of backlights is a mini back light with an ultra-slim design. Edge-enhancing technology is built-in to provide maximum contrast to backlit objects, providing the ability to get sharp images of round and highly reflective objects. The MBL Series is a Multi-Drive™ light capable of being adjusted remotely from a smartphone or tablet through SmartVisionLink.
Seriously small. Seriously bright.
MBL mini backlights provide a high density of LEDs with an active area ranging from 25 x 25 mm to 100 x 100 mm. The integrated constant current Multi-Drive™ LED driver simplifies installation and use while delivering either constant or strobe operation. And with a surface illuminance of up to 190,000 lux in continuous mode and 550,000 lux in OverDrive™, these are seriously bright backlights.
Give yourself an edge
Built-in edge enhancing technology provides collimated lighting for uniform, consistent light. Get excellent edge contrast for shiny parts and curved edges while improving overall image clarity.
Screw with standard backlighting
Screw with edge-enhanced backlight
Product Details
- Illumination Type:Backlight, Bright Field
- IP Rating:IP50
- Mode:Multi-Drive™
- SmartVisionLink:Compatible
Product Advantages

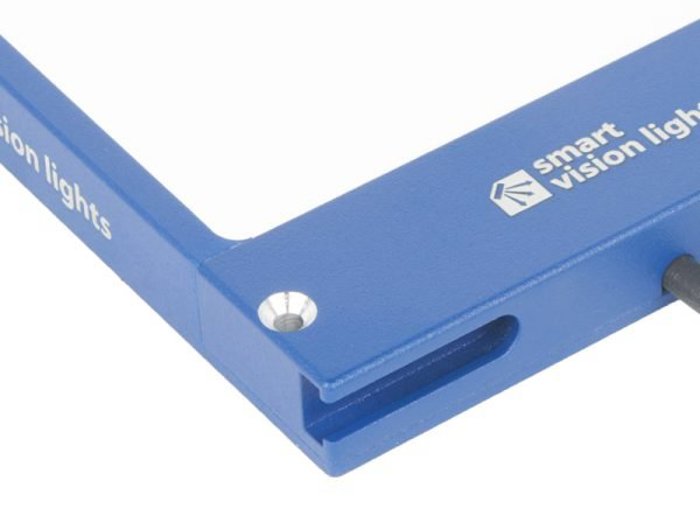

- Small form factor for easy installation
- Edge-enhancing technology built-in for high contrast inspections

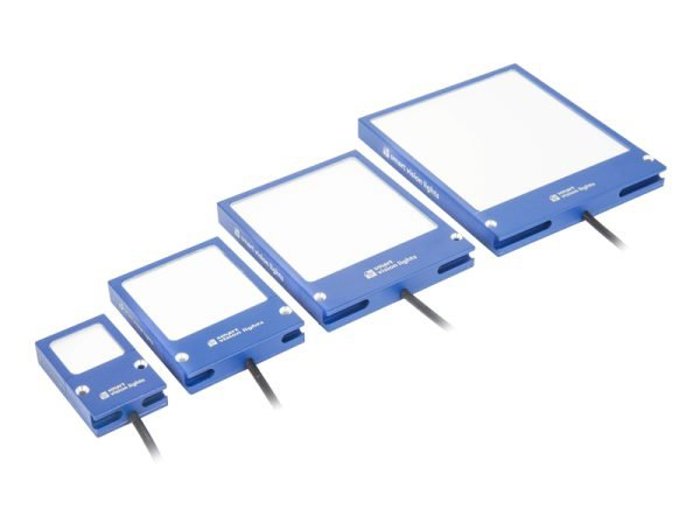

- Comes in four sizes: 25x25, 50x50, 75x75, and 100x100 mm (size of active area)

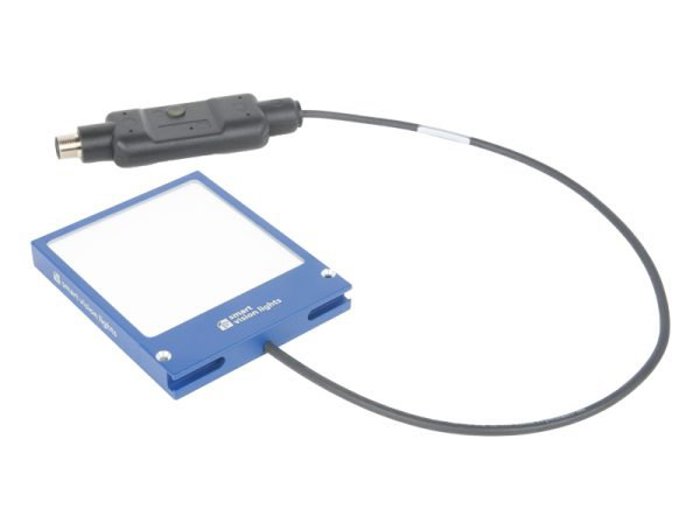

- Built-in Multi-Drive™ driver provides ability to easily switch between continuous operation and OverDrive™ strobe mode
